SHV-5 Floating Shield CF Feedthroughs

SHV-5 Floating Shield Feedthrough on CF Flanges

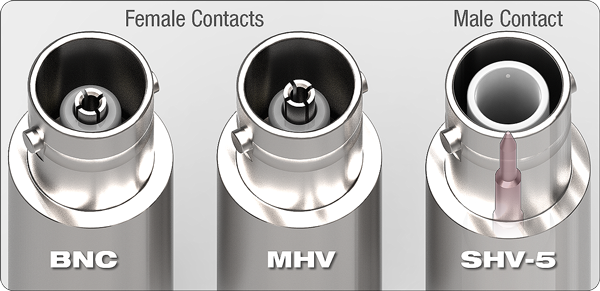

SHV-5 Coaxial Interface

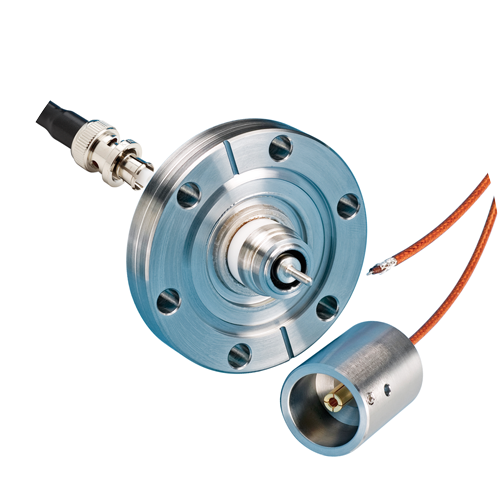

The 'Safe High Voltage' connector interface is designed for low noise 50-ohm lines requiring higher voltage than is possible with a standard BNC interface. SHV-5 coaxial feedthroughs are constructed in both grounded and floating shield configurations. Floating shield types provide two concentric conductor paths: an outer metal conductor tube (shield) concentric with, and enclosing, a cylindrical center conductor pin. Both paths are electrically isolated from each other and a mounting flange. Grounded shield SHVs provide only one path that's electrically isolated from the flange; where grounded shield and flange are electrically common. Vacuum side of single-ended grounded and floating SHV feedthroughs have a 0.094 inch (2.4-mm) diameter conductor pin that mates with grounded or floating AccuFast™ connectors.

Features

• SHV-5 Coaxial Interface
• Grounded and Floating Shield
• Single and Double Ended configurations
• Kapton® insulated 50-Ohm cable
• High temperature rated to 250°C
• UHV compatible construction
• Conflat® and ISO KF compatible mounts
• Air service cables/connectors
• Custom solutions on request
