Power-D and Mil-C-5015

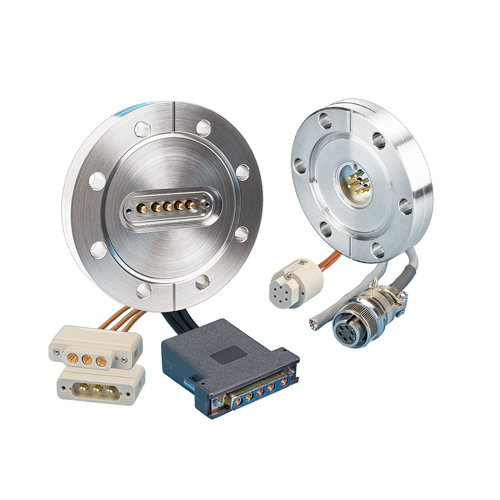

One Power-D CF and one Power-D ISO feedthrough, one UHV and air cable and five power contacts Show Subminiature Power-D for One Power-D CF and one Power-D ISO feedthrough, one UHV and air cable and five power contacts
Subminiature Power-D
One Mil-C-5015 CF and two Mil-C-5015 ISO feedthrough, one air cable and UHV connector Show Mil-C-5015 Circular for One Mil-C-5015 CF and two Mil-C-5015 ISO feedthrough, one air cable and UHV connector
Mil-C-5015 Circular
Power-D and Mil-C-5015 - Ultrahigh (UHV) High In-Vacuum (HV), drawing

Subminiature Power-D and Mil-C-5015

AGP offers two styles of Power hermetic feedthroughs ideally suited for Ultrahigh (UHV) or High In-Vacuum (HV) applications requiring either 10 or 20 AMPs.

20-AMP power feedthroughs along with vacuum and air service cable assemblies and components are offered in a Subminiature Power-D, 3, or 5 pin standard configuration.

10-AMP power feedthroughs along with vacuum and air service cable assemblies and components are offered in a Mil-C-5015 circular, 3, or 6 pin standard configuration.

Please click one of the categories below for more detailed information about that product range.



Power-D and Mil-C-5015 Feedthrough Specifications
Electrical
  • Power-D - Voltage, Maximum
  • Mil-C-5015 - Voltage, Maximum
  • Power-D - Current, Per Pin Maximum @ 20ºC
  • Mil-C 5015 Circular - Current, Per Pin Maximum @ 20ªC

500 VDC
700 VDC
20 Amps*
10 Amps*
*  For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
Power-D and Mil-C 5015 Feedthrough Material Specifications
Material
  • Shell
  • Pins
  • Seal / Insulator
  • Connector, Air
  • Connector, Vacuum


304 Stainless Steel
Au plated, Ni-Fe alloy
Glass-Ceramic
Ni plated Aluminum Alloy and Delrin®
Peek*

*  Peek is a Polyether-ether-ketone thermoplastic.
Feedthrough Vacuum Range Specifications
Vacuum Range
  • UHV, Ultrahigh vacuum
  • HV, High vacuum

1x10-10 Torr
1x10-8 Torr
Feedthrough Temperature Range Specifications
Temperature Range
  • Feedthrough
  • Flange Mount, Conflat
  • Flange Mount, ISO
  • Connector / Cable, Air
  • Connector / Cable, Vacuum
  • Thermal Gradient


-200ºC to 250ºC
-200ºC to 450ºC
-26ºC to 150ºC
80ºC
250ºC
25ºC / Minute Maximum

* Overall assembly ratings must be adjusted to that of the lowest-rated component.

Ratings for in vacuum PEEK cable assemblies and Air-Service Cables are listed on the next pages.

This category is actually two different styles of feedthroughs.  Please click one of the categories below for more detailed information about that product range.
