SMA Connectors

Accu-Fast 375 - Connector

Accu-Fast 375 - Connector

Part Number: 111025
Accu-Fast 375 Connector. Mates directly to the vacuum side of our "Single-Ended, Grounded-Shield" SMA feedthroughs.

(Designed for Accu-Glass Products TYP6 cable, PN - 100720)
$193.00
Accu-Fast 620 - Connector

Accu-Fast 620 - Connector

Part Number: 111026
Accu-Fast 620 Connector. Mates directly to the vacuum side of our "Single-Ended, Floating-Shield" SMA feedthroughs.

(Designed for Accu-Glass Products TYP6 cable, PN - 100720)
$193.00
Gold Male SMA Connector

SMA Male - UHV Connector

Part Number: 111027

SMA male connector, UHV rated. (Designed for Accu-Glass Products TYP6 cable, PN - 100720)

$99.00
Gold Female SMA Connector

SMA Female - UHV Connector

Part Number: 111028

SMA female connector. UHV rated. (Designed for Accu-Glass Products TYP6 cable, PN - 100720)

$99.00
User-End Female - UHV Connector

User-End Female - UHV Connector

Part Number: 111022
User End Female Connector, UHV rated.

(Designed for Accu-Glass Products TYP6 cable, PN - 100720)
$180.00
UHV-Solder, Ultrahigh (UHV) Ultra HIgh In-Vacuum (HV)

In-Vacuum Solder - UHV

Part Number: 110796

Accu-Glass alloy In-Vacuum solder. 1" length.

85% Gold and 15% Proprietary Alloy.

$48.00
Solder Flux - Isopropyl Alcohol Soluble

Isopropyl Alcohol Soluble Solder Flux

Part Number: 110797
Isopropyl alcohol soluble flux. 1/2 oz. bottle.
*** Due to restrictions on shipping "Hazardous Materials".   This item must be shipped "Ground" and cannot be exported outside of the United States. ***
$55.00
Vacuum High Temperature Soldering Iron

High Temperature Vacuum Soldering Iron

Part Number: 110800
High temperature butane soldering iron. Great for Vacuum Soldering!
Variable temperature up to 310°C.
Use with UHV solder PN - 110796.
$236.00
placeholder image

SMA Coaxial Connectors

Components in this SMA section are sold as the most basic components.

SMA Connectors listed above are designed for use with Accu-Glass Products' TYP6, 26 AWG Kapton® insulated coaxial cable (PN-100720).  The use of any other coaxial cable will require modification to some of the supplied components.  For this reason, the use of other coaxial cables is not recommended.

SMA Coaxial Interface

The 'Subminiature Type-A' coaxial connector, referred to as the SMA coaxial interface, is commonly used in conjunction with high-frequency, low noise 50-ohm instrumentation signal lines. SMA coaxial feedthroughs are constructed in both grounded and floating shield configurations. Floating shield types provide two concentric conductor paths: an outer metal conductor tube (shield) concentric with, and enclosing, a cylindrical center conductor pin. Both paths are electrically isolated from each other and a mounting flange. Grounded shield SMAs provide only one path that's electrically isolated from the flange, where grounded shield and flange are electrically common.

Vacuum side of single-ended grounded and floating SMA feedthroughs have a 0.094 inch (2.4-mm) diameter conductor pin that mates with grounded or floating AccuFast™ connectors. Vacuum compatible cable assemblies are fitted with Kapton® insulated 26 AWG, 50-ohm coaxial cable, with either Accufast™ connectors or gold-plated SMA connectors.

SMA Connector Features

  • SMA Coaxial Interface
  • Grounded and Floating Shield
  • Single and Double Ended Configurations
  • Kapton® insulated 50-Ohm cable
  • High temperature rated to 250°C
  • UHV compatible construction
  • Conflat® and ISO KF compatible mounts
  • Air service cables/connectors
  • Custom solutions on request

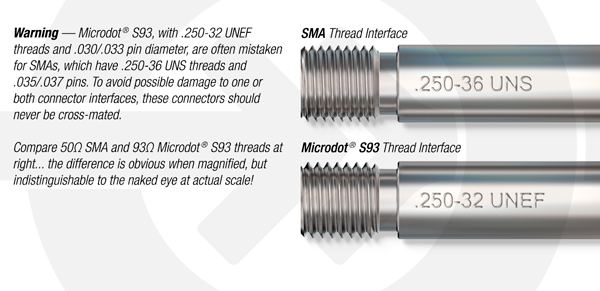

mating warning diagram on SMA and Microdot S93 threads
