Rotary ISO Feedthrough Flanges

Rotary Feedthrough Mounted on ISO Flanges

Click on individual products above to select options.

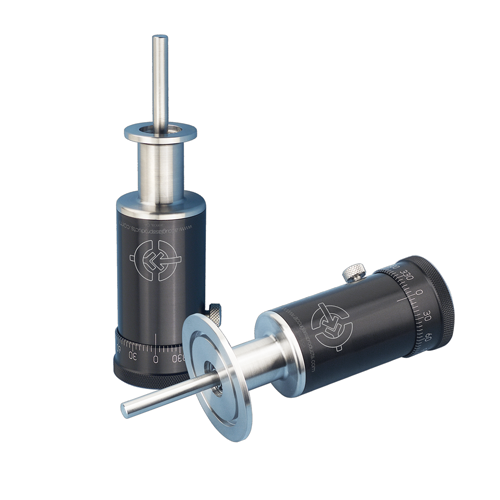

Bellows Sealed Rotary Feedthrough (ISO)

Accu-Glass Products high-torque HTR series rotary ISO feedthroughs are designed to operate at temperatures as high as 250°C and rotational torque up to 250 in-oz. They are constructed of black-anodized aluminum and stainless steel, where only stainless steel surfaces are exposed to the vacuum environment. In a vacuum, bearings are dry-film lubricated with tungsten-disulfide, while airside bearings are lubricated with high-temperature Krytox® lubricant. The rotation shaft is sealed with an AM-350 edge-welded bellows.

Standard rotary ISO feedthroughs are fitted with a 1.65 diameter manual actuator, which can be fitted with an optional three-spoke Speed-Handle for faster actuation. Factory-converted motorized solutions are also available on request. Our motor options include a reversible constant speed AC motor, two DC stepper motors, for medium and high torque applications respectively, and a 90° pneumatic actuator. Manual feedthrough rotation can be monitored via a 360° / 5° increment laser-etched scale found on the manual actuator knob. Rotary feedthroughs are available on Conflat® compatible CF style metal seal or ISO-KF elastomer seal flanges.

Rotary Feedthrough ISO Features

• All precision bearings — no bushings
• Improved shaft coupling design for high torque, rated to 250 in-oz
• High temperature rated to 250°C
• UHV compatible construction
• Conflat® and ISO NW compatible mounts
• Welded bellows seal
• Manual actuator
• Continuous rotary motion
• Rotary position lock
• Optional stepper motor or air actuator
