Subminiature-C (Sub-C) NW ISO KF / LF Feedthroughs

Subminiature-C High Vacuum (HV) Feedthroughs

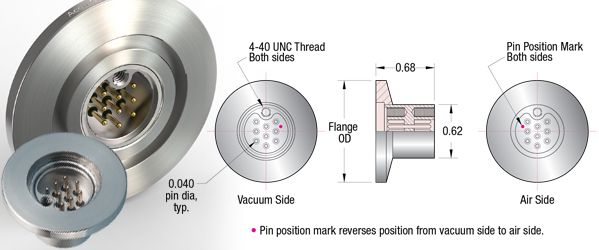

Accu-Glass Products Subminiature-C multi-pin hermetic feedthroughs (also known as Sub-C or Type-C) are designed for applications where space is limited, or where Subminiature-D (Sub-D) connections will not fit. Its compact design allows installation of one Subminiature-C 9-pin feedthrough into an ISO-NW16KF elastomer seal vacuum flange, or two (2) Subminiature-C 9-Pin feedthroughs on an ISO NW40 KF flange.

Nine gold-plated pins are arranged in a straight through pin-to-pin design and are hermetically sealed and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.

Air and vacuum side connectors are fitted with a captured stainless steel socket-head cap screw providing a means of securely locking connectors to the mating feedthrough. On the vacuum side, Kapton® insulated cable assemblies fitted with PEEK connectors are available to meet the rigorous demands of (HV) high vacuum environments.  In-vacuum connector screws are vented where required and the feedthrough's threaded-boss doubles as a connection polarizing key. The air and vacuum Pin-1 position is identified with a permanent surface mark, facilitating and simplifying electrical lead and pin assignment. Subminiature-C feedthroughs and cables are sold individually or as kits, where each kit contains a feedthrough and both vacuum and air side cable assemblies.

Warning: Please review 'Glow Discharge Graph' and how voltage rating is affected by pressure change.

Features

  • Subminiature-C 9-Pin Interface
  • High temperature rated to 150°C, when used with Viton® compound elastomer gaskets
  • High Vacuum compatible construction
  • ISO NW compatible mounts
  • Kapton® Insulated Vacuum Cables
  • PEEK or Macor® Connectors with Locking Screws
  • Air Service Cables / Connectors
  • Custom Solutions on Request

Specifications

Electrical 1, 2
Voltage500VDC
Current5A
Material
Shell304 Stainless Steel
PinsAu Plated, Ni-Fe
Seal / InsulatorGlass-Ceramic
Connector, AirDelrin®
Connector, Vacuum 3PEEK
Connector, High TemperatureMacor® Ceramic
Vacuum Range 4
HV, High Vacuum1x10-8 Torr
Temperature Range 5
Feedthrough-200° to 250°C
ISO Flange-26° to 150°C
Connector / Cable
   Delrin®80°C
   PEEK250°C
   Macor® Ceramic400°C
Thermal Gradient25°C / Minute
Notes
  1. Electrical ratings are maximum test values, with feedthrough's vacuum side at ≤ 1x10-4 Torr. Feedthroughs are intended for instrumentation applications carrying low level signal voltage and current.
  2. For proper heat dissipation, a maximum of 20% of the pins on a feedthrough may carry the maximum pin current at any given time.
  3. PEEK is a polyether ether ketone thermoplastic.
  4. Leak tested to 5x10-10 Standard cc/sec of He.
  5. Overall assembly ratings must be adjusted to that of its lowest rated component. For cryogenic service, the lowest recommended temperature is -200°C (without elastomer gasket)
  6. Unless designated a 'kit,' connectors and cable assemblies are not included with feedthrough and must be purchased separately.
