BNC Coaxial Components

4x single-ended grounded shield BNC CF feedthrough Show Grounded, CF Feedthroughs for 4x single-ended grounded shield BNC CF feedthrough
Grounded, CF Feedthroughs
Single-ended floating shield BNC CF feedthrough Show Floating, CF Feedthroughs for Single-ended floating shield BNC CF feedthrough
Floating, CF Feedthroughs
Single and double-ended grounded shield BNC ISO feedthroughs Show Grounded, ISO KF Feedthroughs for Single and double-ended grounded shield BNC ISO feedthroughs
Grounded, ISO KF Feedthroughs
Single and double-ended floating shield BNC ISO feedthroughs Show Floating, ISO KF Feedthroughs for Single and double-ended floating shield BNC ISO feedthroughs
Floating, ISO KF Feedthroughs
Accu-Fast 500, 875 and BNC male connector to cables Show UHV Cables for Accu-Fast 500, 875 and BNC male connector to cables
UHV Cables
Accu-Fast 500 and 875 connectors with male BNC connector and user-end female connector Show UHV Components for Accu-Fast 500 and 875 connectors with male BNC connector and user-end female connector
UHV Components
Close up of male BNC connector to connector and a BNC air side connector Show Air Cables / Components for Close up of male BNC connector to connector and a BNC air side connector
Air Cables / Components
Close up of BNC female to BNC female adapter Show Hybrid Adapters for Close up of BNC female to BNC female adapter
Hybrid Adapters
BNC Coaxial Ultrahigh High UHV HV In-Vacuum, Drawing

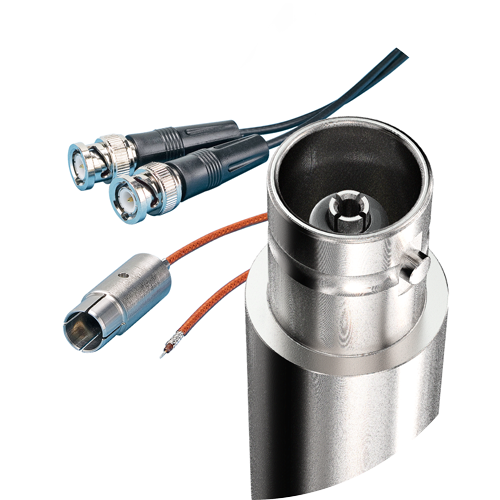

Coaxial BNC Feedthroughs and Components

The 'Bayonet Neill-Concelman' Connector, usually referred to as a BNC coaxial connection, is commonly used in conjunction with low noise 50-ohm instrumentation lines.  Accu-Glass Products' coaxial BNC instrumentation feedthroughs are constructed with either floating shields or grounded shields.

Floating shields provide two concentric conductors: one outer metal tube or shield conductor concentric with, and enclosing, a cylindrical center conductor.  Both electrical paths are electrically isolated from the vacuum flange.

Grounded shields provide only one electrical path that is electrically isolated from the vacuum flange.  With grounded shields, the shield and vacuum flange are electrically common.

Ultrahigh (UHV) compatible coaxial BNC cable assemblies are available to meet the needs of most in-vacuum, low noise instrumentation cable applications.  The vacuum side of a grounded and floating BNC feedthrough consists of a 0.094 inch (2.4mm) diameter conductor pin that mates perfectly with Accu-Glass Products' grounded, or floating Accufast™ connector interface.

mating warning diagram on differences between BNC and MHV feedthroughs
