BNC - Single Ended, Floating Shield Feedthrough on a NW40 KF Flange
Part Number: 110135

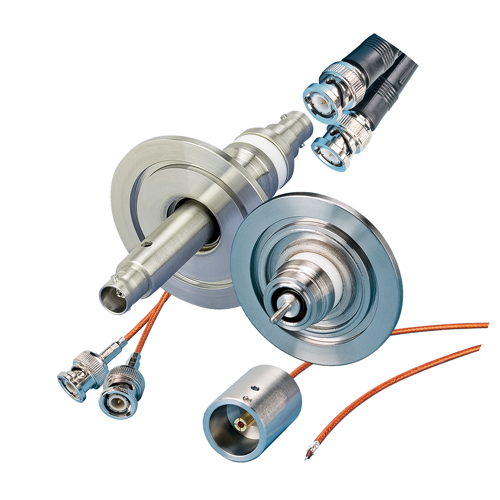

BNC - Single Ended, Floating Shield Coaxial Feedthrough on a NW40 KF Flange.
$260.00
BNC Floating Shield Feedthroughs on ISO Flanges
BNC - Double Ended, Floating Shield Feedthrough on a NW16 KF Flange
Part Number: 110136
BNC - Double Ended, Floating Shield Coaxial Feedthrough on a NW16 KF Flange.
$444.00
BNC - Double Ended, Floating Shield Feedthrough on a NW40 KF Flange
Part Number: 110137
BNC - Double Ended, Floating Shield Coaxial Feedthrough on a NW40 KF Flange.
$455.00
Floating Shield BNC ISO Feedthroughs

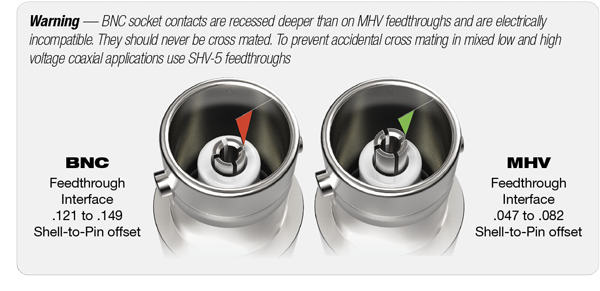

The 'Bayonet Neill-Concelman' connector, referred to as a BNC coaxial connection, is commonly used in conjunction with low noise 50-ohm instrumentation signal lines. BNC coaxial feedthroughs are constructed in both grounded and floating shield configurations. Floating shield types provide two concentric conductor paths: an outer metal conductor tube (shield) concentric with, and enclosing, a cylindrical center conductor pin. Both paths are electrically isolated from each other and a mounting flange. Grounded shield BNCs provide only one path that's electrically isolated from the flange, where grounded shield and flange are electrically common.
Vacuum side of single-ended grounded and floating BNC feedthroughs have a 0.094 inch (2.4-mm) diameter conductor pin that mates with grounded or floating AccuFast™ connectors.
Features
- BNC Coaxial Interface
- Grounded and Floating Shield
- Single and Double Ended configurations
- Kapton® insulated 50-Ohm cable
- High temperature rated to 250°C
- UHV compatible construction
- Conflat® and ISO KF compatible mounts
- Air service cables/connectors
- Custom solutions on request
