Subminiature Coax-D CF Feedthroughs

Subminiature-D Coaxial CF Feedthrough Flanges

9D-1CX4I-275, 1-Coax, 4-Instrumentation Feedthrough on a 2.7

1 Coax, 4 Instrumentation Feedthrough on a 2.75" CF Flange

Part Number: 100500

1 Coaxial + 4 Instrumentation pin Feedthrough on a 275" CF Flange.

$349.00

Quantity

3-Coax Feedthrough on a 4.50" CF Flange

Part Number: 100510

3 Coaxial Feedthroughs on a 4.50" CF Flange.

$443.00

Quantity

5-Coax Feedthrough on a 4.50" CF Flange

Part Number: 100520

5 Coaxial Feedthroughs on a 4.50" CF Flange.

$467.00

Quantity

15D-3CX2-450, 6-Coax Feedthroughs on a 4.50" CF Flange

6 Coaxial Feedthroughs on a 4.50" CF Flange

Part Number: 100512

6 Coaxial Feedthroughs (3 pin x 2) on a 4.50" CF Flange.

$840.00

Quantity

10 Coax Feedthrough on a 4.50" CF Flange

Part Number: 100522

10 Coaxial Feedthroughs (5 pin X 2) on a 4.50" CF Flange.

$863.00

Quantity

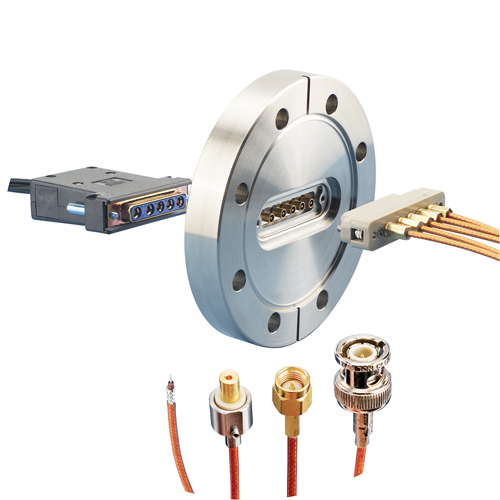

Coax-D CF Feedthroughs

These feedthroughs are mounted on CF Flanges that incorporate the industry standard "captured copper gasket" sealing principle, making it easy to mount to your existing CF Flange ports.

Coax-D - CF Feedthroughs

Sub-D Coaxial Feedthrough Features

•   1, 3, and 5 Subminiature-D interface
•   Floating Shield Design
•   Kapton® insulated 50-Ohm cables
•   High temperature rated to 250°C
•   UHV compatible construction
•   Conflat® compatible mounts
•   PEEK Connector with Locking Screws
•   Air service cables/connectors
•   Custom solutions on request
