Subminiature-D Coaxial Feedthroughs and Accessories

One 5-coax and one 1-coax CF feedthrough Show CF Feedthroughs for One 5-coax and one 1-coax CF feedthrough
CF Feedthroughs
One 3-coax and one 1-coax ISO feedthrough Show ISO KF/ LF Feedthroughs for One 3-coax and one 1-coax ISO feedthrough
ISO KF/ LF Feedthroughs
One 5-coax, one 3-coax and one 1-coax female connector to cables Show UHV Cables for One 5-coax, one 3-coax and one 1-coax female connector to cables
UHV Cables
One 5-coax, one 3-coax and one 1-coax female UHV connectors Show UHV Components for One 5-coax, one 3-coax and one 1-coax female UHV connectors
UHV Components
Close up of 3-coax, female sub-D connector to cable with three male BNC connectors on the other end Show Air Cables for Close up of 3-coax, female sub-D connector to cable with three male BNC connectors on the other end
Air Cables
One 3-coax and one 1-coax female air connector with 10 crimp contact pins Show Air Components for One 3-coax and one 1-coax female air connector with 10 crimp contact pins
Air Components
Coax-D (Sub-D) Feedthroughs and Accessories

Coax-DTM Feedthroughs and Accessories

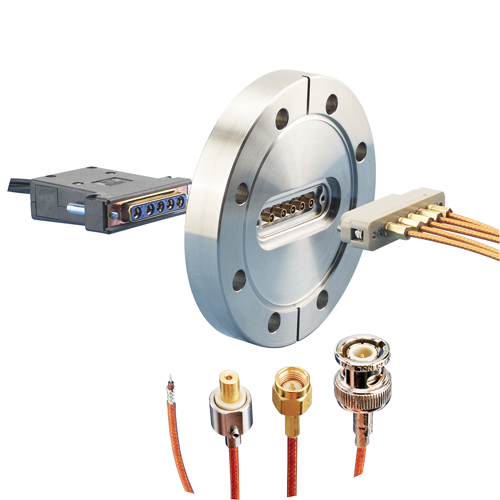

Coaxial hermetic subminaiture-D feedthroughs with coaxial pin and shield are available in 1, 3 and 5 pin configurations mounted in standard 9D, 15D, and 25D shell sizes, respectively.

The coaxial shield floats with respect to ground providing a secondary electrical path.  The single pin coax-D feedthrough also includes four non-shielded instrumentation pins for added connection capability.  Gold plated pins and shields are in a straight through pin-to-pin design, are hermetically sealed and electrically insulated in a stainless steel shell using the latest in glass-ceramic bonding technology.

Ultrahigh vacuum cable assemblies with PEEK (polyetheretherketone) connectors and Kapton® insulated 50-Ohm coaxial cables are available to meet the demands of UHV environments.  The connection accessories must be purchased separately.  Vacuum side cable assemblies, individual connectors and other accessories can be found from the links below.  Custom sub-D coaxial feedthrough products are available on request.

pdf iconCatalog Page
