1 Coax 4 Instrumentation Feedthrough on a NW40 KF Flange
Part Number: 100501
1 Coaxial + 4 Instrumentation Pin Feedthrough on a NW40 KF Flange.
$349.00
Coax-D ISO Feedthroughs
3-Coax Feedthrough on a NW50 KF Flange
Part Number: 100511
3 Pin Coaxial Feedthrough on a NW50 KF Flange.
$443.00
5-Coax Feedthrough on a NW63 LF Flange
Part Number: 100521
5 Pin Coaxial Feedthrough on a NW63 LF Flange.
$467.00
10 Coax Feedthrough on a NW100 LF Flange
Part Number: 100523
10 Pin Coaxial Feedthrough (5 Pin X 2) on a NW100 LF Flange.
$863.00

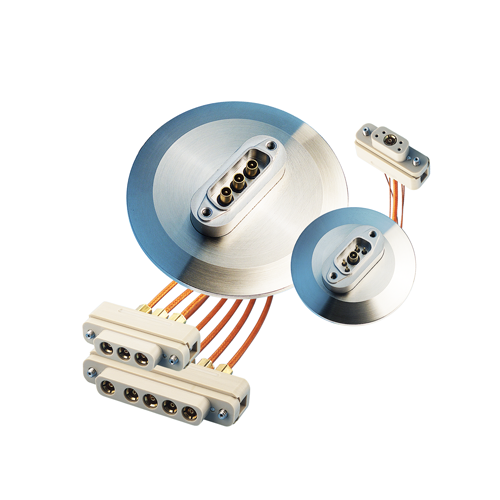

Sub-D Coaxial Feedthroughs on ISO Flanges
These feedthroughs are mounted on KF Flanges that incorporate the industry standard "Quick Release Hinged Clamp", making it easy to mount/demount to your existing KF Flange ports.
Features
• 1, 3, and 5 Subminiature-D interface
• Floating Shield Design
• Kapton® insulated 50-Ohm cable
• High temperature rated to 150°C
• UHV compatible construction
• ISO compatible mounts
• PEEK Connector with Locking Screws
• Air service cables/connectors
• Custom solutions on request
